Superior Quality and High Reliability
Fastest Possible delivery; on-time delivery according to customer needs
Completely refurbished just like brand-new, and painted with the best paint; All wearing parts are being replaced.

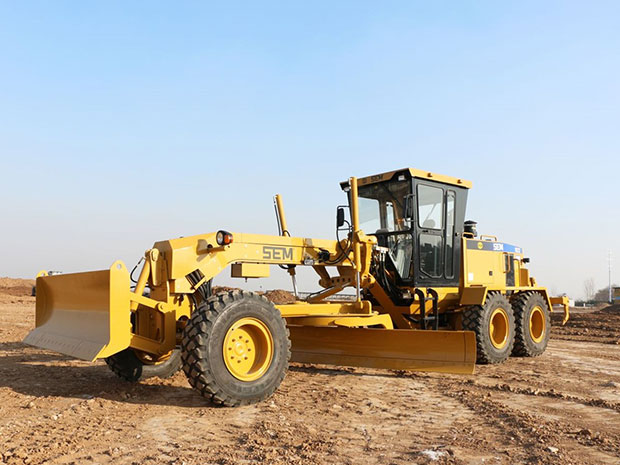

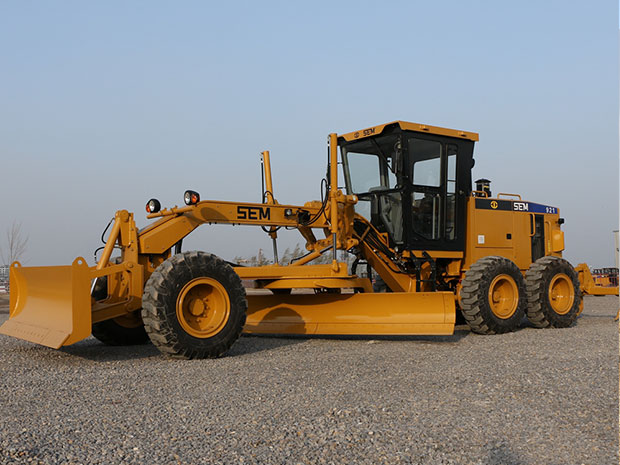

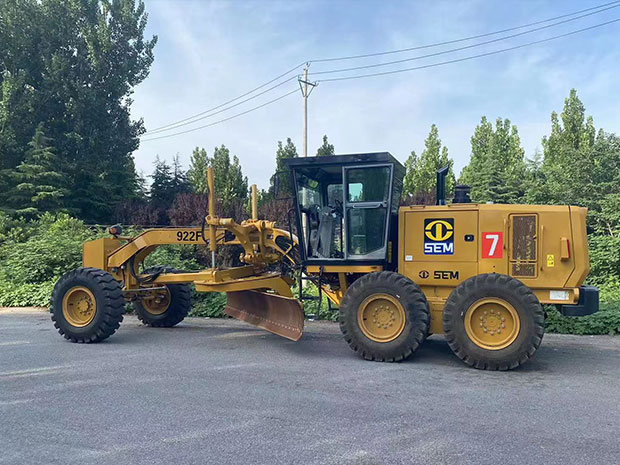

SEM Motor grader is mainly used for shaping and leveling operations in the construction process of earthwork, and plays a vital role. Motor graders are the main machinery used for shaping and leveling operations in earthwork, and are widely used in large-area ground leveling operations such as highways and airports.
Improved bearing Layout and optimized load distribution with 4 planetary gears final drive
Less down time and reduced labor and service cost for maintenance and repairing
Fuel Efficient shangchai Engine.
|
Item |
Parameter |
|
Overall weight (kg) |
15070 |
|
weight - front axle(kg) |
4236 |
|
weight - back axle(kg) |
10834 |
|
Front / back axle load distribution |
28% /72% |
|
Overall dimension(mm) |
8703*2630*3360 |
|
Max. Tractive Force(KN) |
≥78 |
|
Max. forward speed(km/h) |
40 |
|
Max. backward speed(km/h) |
25 |
|
Engine |
Shangchai |
|
Model |
SC9DK190.1G3 |
|
Rated power(kw) |
140 |
|
Rated revolution(rpm) |
2200.0 |
|
Displacement(L) |
8.8 |
|
Transmission |
Hangzhou advance gearbox |
|
Gear |
6 in the front 6 and 3 in the back |
|
Hydraulic system |
load sensing, proportional priority with pressure compensation |
|
Working pump |
Variable Piston Pump |
|
Working valve |
Proportional priority with pressure compensation |
|
Tire |
Diagonal tire with inner tube |
|
Layer/pattern |
12pr, E2/L2 |
|
Model |
17.5-25 |
|
Max. articulation angle(°) |
±20 |
