Superior Quality and High Reliability
Fastest Possible delivery; on-time delivery according to customer needs
Completely refurbished just like brand-new, and painted with the best paint; All wearing parts are being replaced.

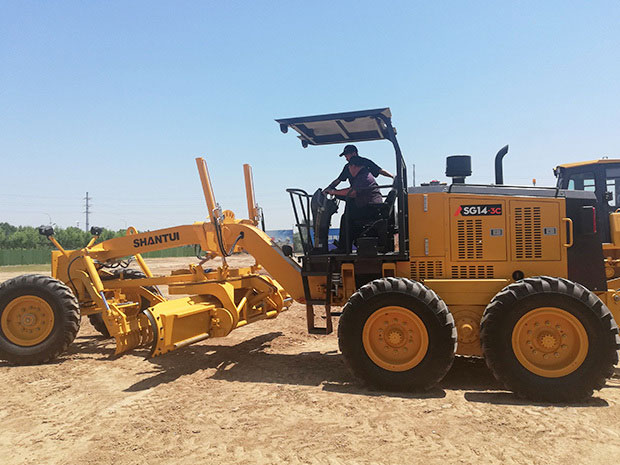

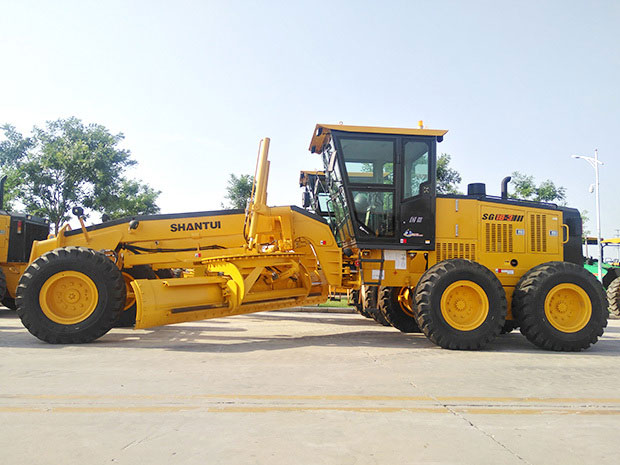

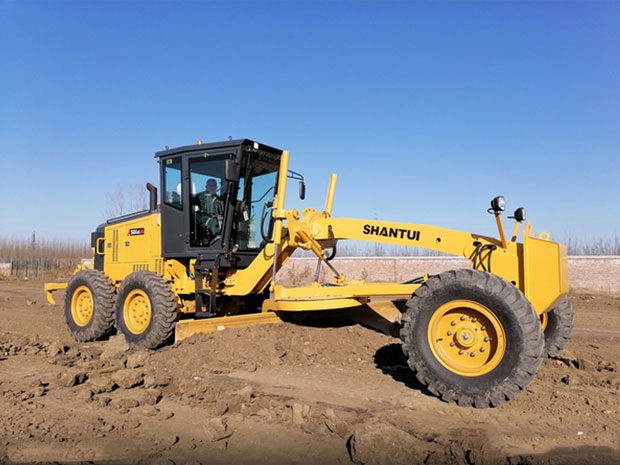

SHANTUI Motor grader are the main machinery used for shaping and leveling operations in earthwork, and are widely used in large-area ground leveling operations such as highways and airports.
Hydraulic transmission controlled by electricity
Working equipment controlled by multi-valve, short operating bar, adjustable operating table, reliable instrument
Cabin equipped with shock absorption system
New blade steering structure can make the blade tilt by 90., turn round by 360.
Air-conditioner
|
Specification |
|
|
Min ground clearance |
430mm |
|
Operating weight |
15.6T |
|
Min turning radius |
7.8m |
|
Grade ability |
20degree |
|
Blade width |
3965mm |
|
Blade height |
610mm |
|
Max lift above ground |
400mm |
|
Circumgyrate angle(°) |
360 |
|
Max blade lateral spread clift/right |
2000/2100mm |
|
Grading force |
70.15kn |
|
Engine(optional) |
|
|
Model |
ShangchaiD6114ZG1B |
|
Type |
Turbocharged, intercooled, in-line, 4-cycle |
|
Rated revolution(rpm) |
2300(2200) |
|
Piston displacement |
8.27L |
|
Max torque(N.m/rpm) |
678/1600(820/1400) |
|
Power transmission system |
|
|
Torque converter type |
Electrical-hydraulic control |
|
Brake system |
Service brake adopts single-return hydraulic assistance control and is hoof brake. Parking brake adopts pliers-pan type, soft |
|
Front axle: Frame structure. End cover is connected with front frame. |
|
|
Tyre: 17.5-25 Drive type or common type. |
|
|
Rear axle: No-spin, no-self-rotation, closed and self-lock differential imported from U.S.A. Planetary type transmission |
|
|
Overall dimension |
|
|
8580x2590x3400mm(LxWxH) |
|
